DC 5-30V 4A Stepper Motor Driver by GODIYMODULES with LCD Control

Description

Product Overview

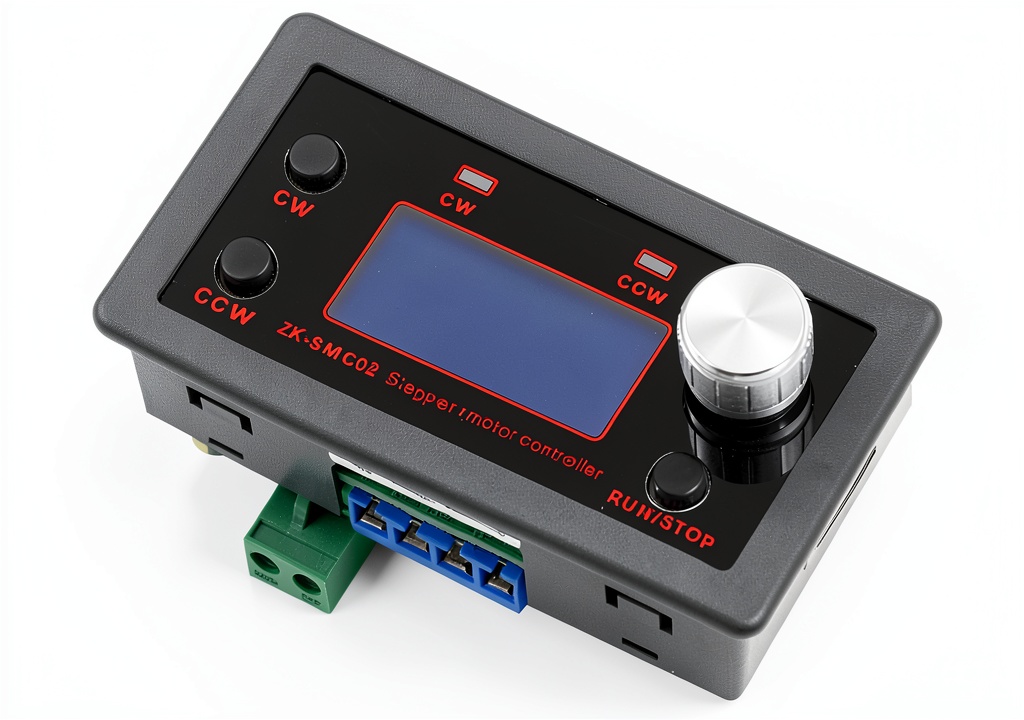

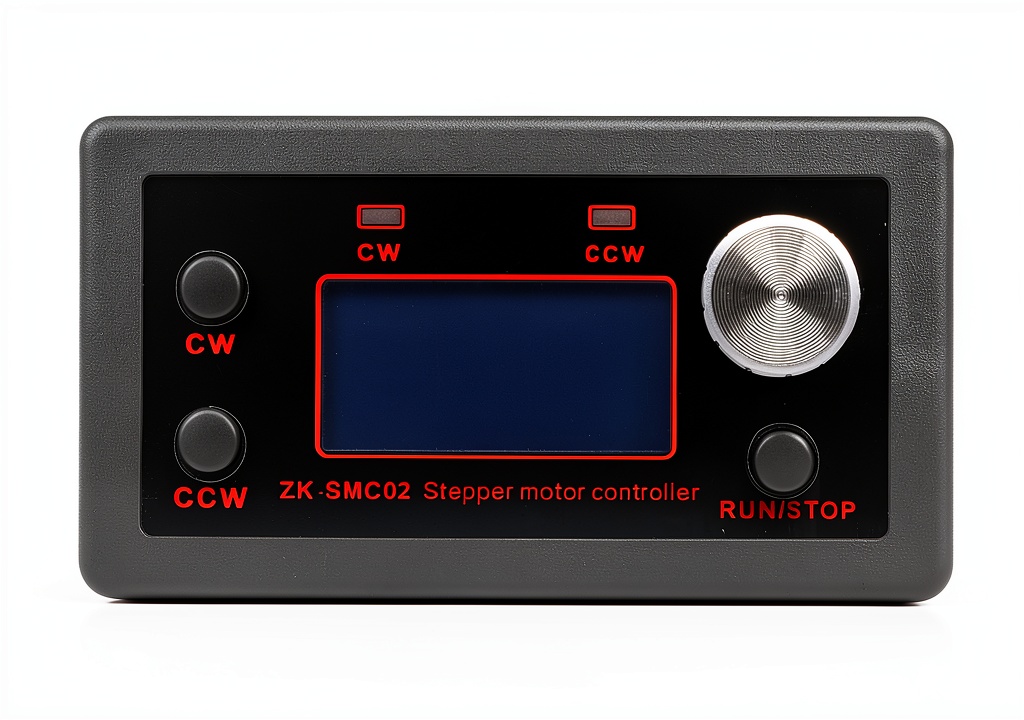

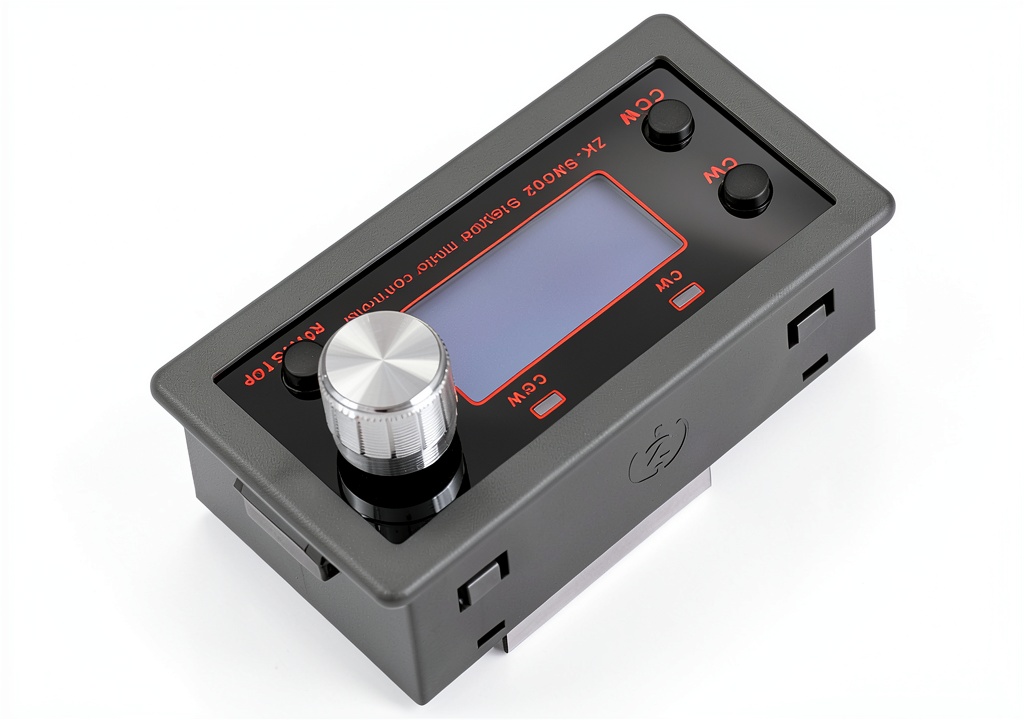

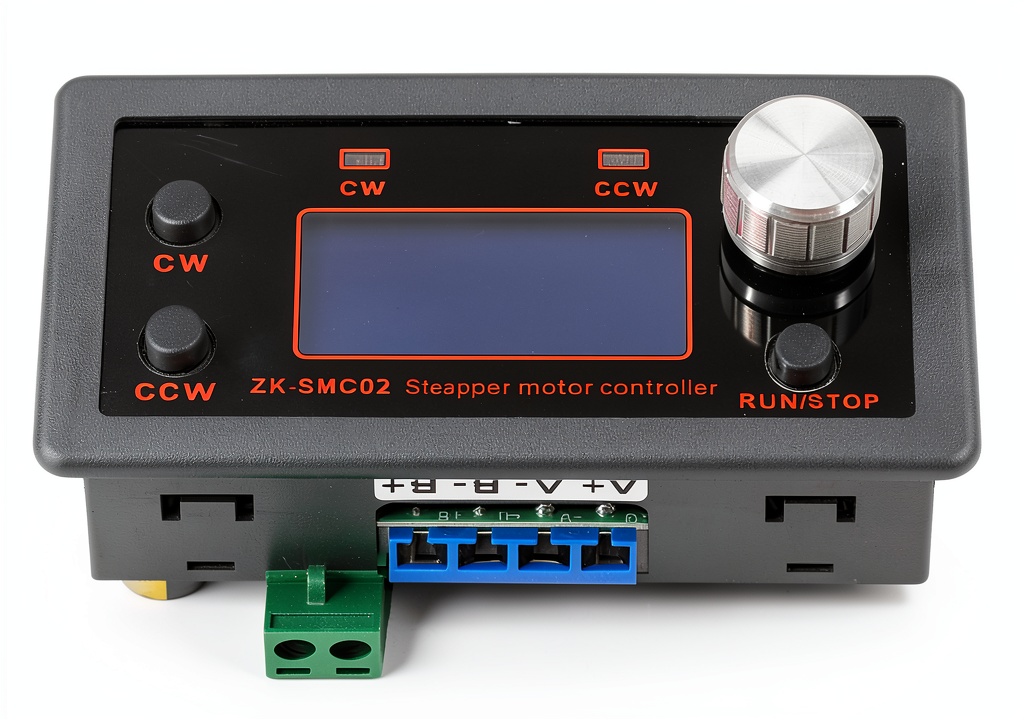

The DC 5-30V 4A Stepper Motor Driver and Controller from GODIYMODULES is engineered to provide reliable, high‑precision control for a variety of stepper motor applications. Housed in a compact aluminum enclosure measuring 5.51 × 3.74 × 2.28 inches and weighing only 3.2 ounces, the unit combines a robust driver circuit with an intuitive LCD interface, allowing users to set speed, direction, and angle without the need for external programming hardware. The integrated TTL serial port supports PLC communication, enabling seamless integration into automated systems. Designed for both hobbyist projects and professional equipment, the driver accepts input voltages from 5 V up to 30 V and delivers up to 4 A continuous current, ensuring smooth operation across a broad spectrum of motor sizes. The package includes a single unit ready for immediate installation, and the device is built to meet the rigorous standards of the Electrical Motor Controls category, as reflected by its ranking among the top 50 products in that segment.

Usage

This driver excels in environments where precise motion control is essential. Whether you are constructing a 3‑D printer, configuring a CNC milling machine, developing a robotic arm, or building a custom automation system, the controller offers the flexibility to adjust pulse frequency, delay, and step count on the fly. The LCD screen provides real‑time feedback, making it easy to fine‑tune parameters during testing or production runs. Its serial communication capability allows integration with popular microcontroller platforms such as Arduino, Raspberry Pi, and industrial PLCs, enabling remote monitoring and automated adjustments via simple commands. The lightweight form factor means the driver can be mounted directly on motor brackets or inside control panels without consuming valuable space. Additionally, the device operates without the need for external batteries, drawing power directly from the supplied voltage range, which simplifies wiring and reduces overall system cost.

Why Choose Us

Choosing the GODIYMODULES stepper driver means selecting a product backed by rigorous quality assurance and a commitment to customer satisfaction. Each unit undergoes thorough testing for voltage tolerance, current stability, and thermal performance, ensuring consistent operation even under demanding loads. The aluminum chassis not only provides effective heat dissipation but also protects the internal circuitry from dust and mechanical impact. Our after‑sales support includes detailed documentation, firmware updates, and responsive technical assistance to help you troubleshoot any integration challenges. With a proven track record reflected in a 4.2‑star rating from verified buyers, the driver has earned trust across the maker community and professional engineering circles alike. Moreover, the design incorporates safety features such as over‑current protection and short‑circuit detection, extending the lifespan of both the driver and the connected motor.

Key Features

• Compact aluminum housing for superior heat dissipation and durability
• Integrated LCD display for easy on‑board configuration of speed, direction, and angle
• Serial TTL communication enables seamless PLC and microcontroller integration
• Wide input voltage range (5‑30 V) and up to 4 A continuous current for versatile motor compatibility
• Responsive customer support with firmware updates and technical assistance

FAQ

What types of stepper motors are compatible with this driver?

The driver works with most bipolar and unipolar stepper motors that operate within the 5‑30 V voltage range and require up to 4 A of current per phase. It is suitable for NEMA‑17, NEMA‑23, and similar form factors commonly used in 3‑D printers, CNC machines, and robotic applications.

How do I connect the driver to a microcontroller?

Use the built‑in TTL serial port to connect the driver to any microcontroller that supports UART communication. Configure the baud rate in the driver’s LCD menu, then send simple command strings to set speed, direction, and step count. Detailed command syntax is provided in the user manual.

Is the LCD display backlit for low‑light environments?

Yes, the LCD includes a backlight that can be toggled on or off via the menu, ensuring clear visibility of settings even in dimly lit workspaces.

What safety features are built into the driver?

The unit incorporates over‑current protection, thermal shutdown, and short‑circuit detection. If any of these conditions are triggered, the driver will automatically halt motor operation and display an error code on the LCD, protecting both the driver and the connected motor.

Can I use this driver for continuous operation in an industrial setting?

Absolutely. The driver’s robust construction, efficient heat dissipation, and reliable power handling make it suitable for long‑term, continuous operation in industrial automation, provided the motor specifications remain within the rated limits.
