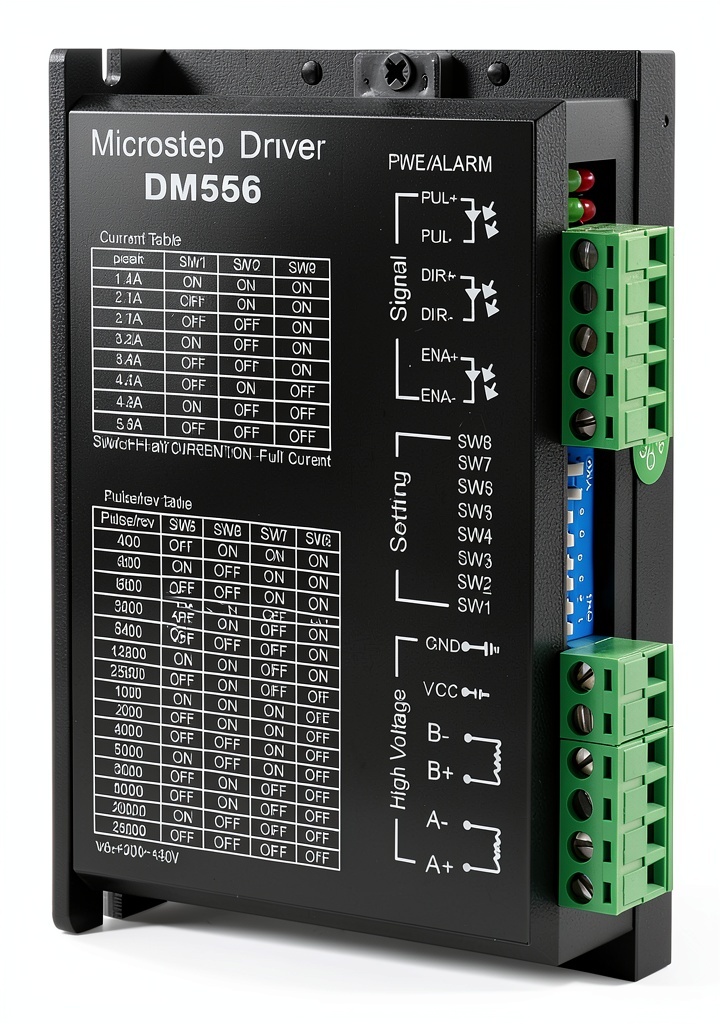

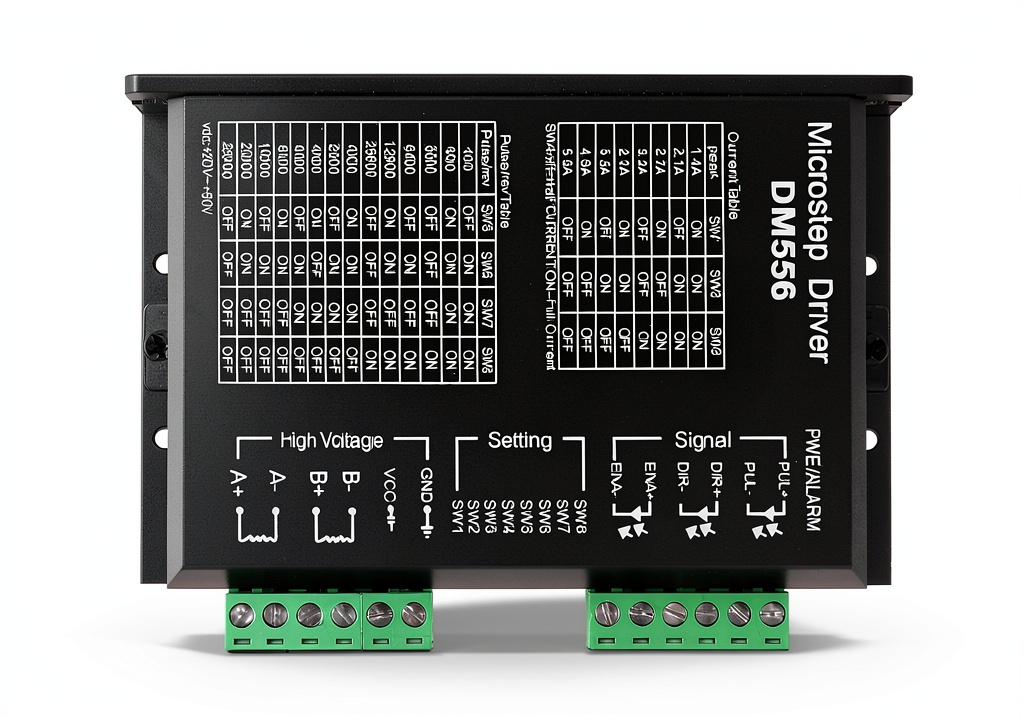

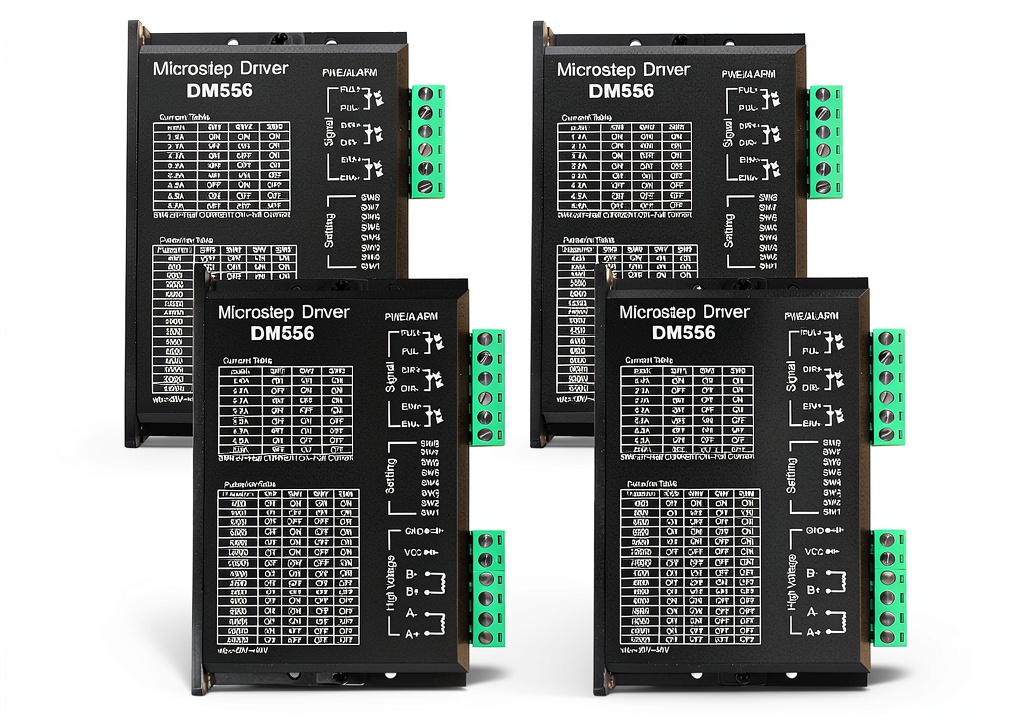

DM556 CNC Stepper Driver ACEIRMC 20 to 50V 5.6A 128 Subdivision

Description

Product Overview

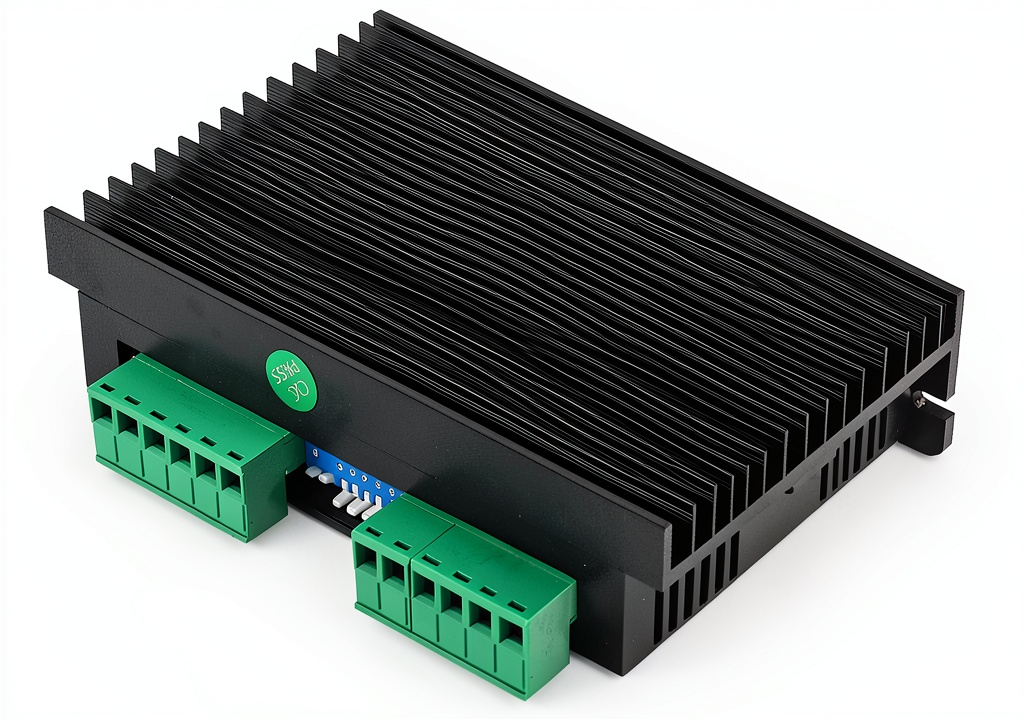

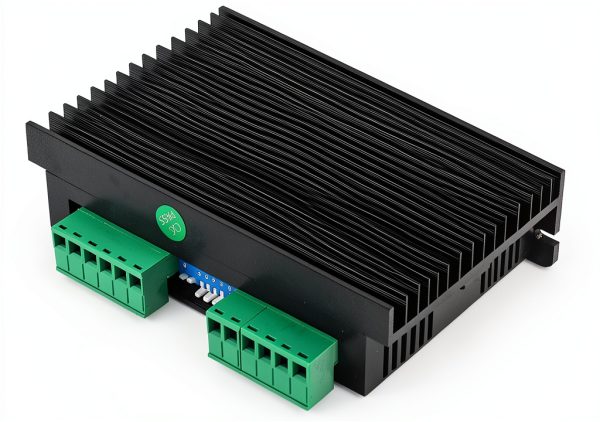

The DM556 CNC Digital Stepper Driver from ACEIRMC is a high‑performance, two‑phase stepper motor controller designed for precision motion control in a wide range of industrial and hobbyist applications. Built with a robust metal enclosure measuring 4.65 x 2.97 x 1.34 inches and weighing 2.27 pounds, the unit combines durability with compactness, making it easy to integrate into tight mechanical assemblies. It operates on a flexible input voltage range of 20 to 50 V DC and can deliver a continuous current of up to 5.6 A per phase, providing the power needed for demanding Nema 17, Nema 23, and Nema 34 stepper motors. The driver features 128 micro‑step subdivision, enabling ultra‑smooth motion and fine positional resolution that is essential for CNC machining, 3‑D printing, robotics, and high‑speed packaging equipment. With an 8‑level adjustable output current (1.0 A‑5.6 A), users can fine‑tune the driver to match the specific torque and speed requirements of their motor setups, ensuring optimal efficiency and reduced heat generation.

Usage

Designed for versatility, the DM556 driver excels in environments where precise, repeatable motion is critical. It is commonly employed in CNC milling machines, laser cutters, and woodworking equipment where accurate positioning directly impacts product quality. In robotics, the driver powers articulated arms and mobile platforms, delivering smooth trajectories that reduce mechanical wear and improve operational lifespan. The controller is also well‑suited for packaging lines, such as labeling, sealing, and case‑forming machines, where synchronized motion of multiple axes is required. Its compatibility with a broad spectrum of stepper motor sizes—Nema 17, 23, and 34—means it can be used in both small‑scale prototype builds and large‑scale industrial installations. The driver’s ability to operate without external batteries simplifies system design, while its compact footprint allows for easy mounting on control panels or directly onto machine frames.

Why Choose Us

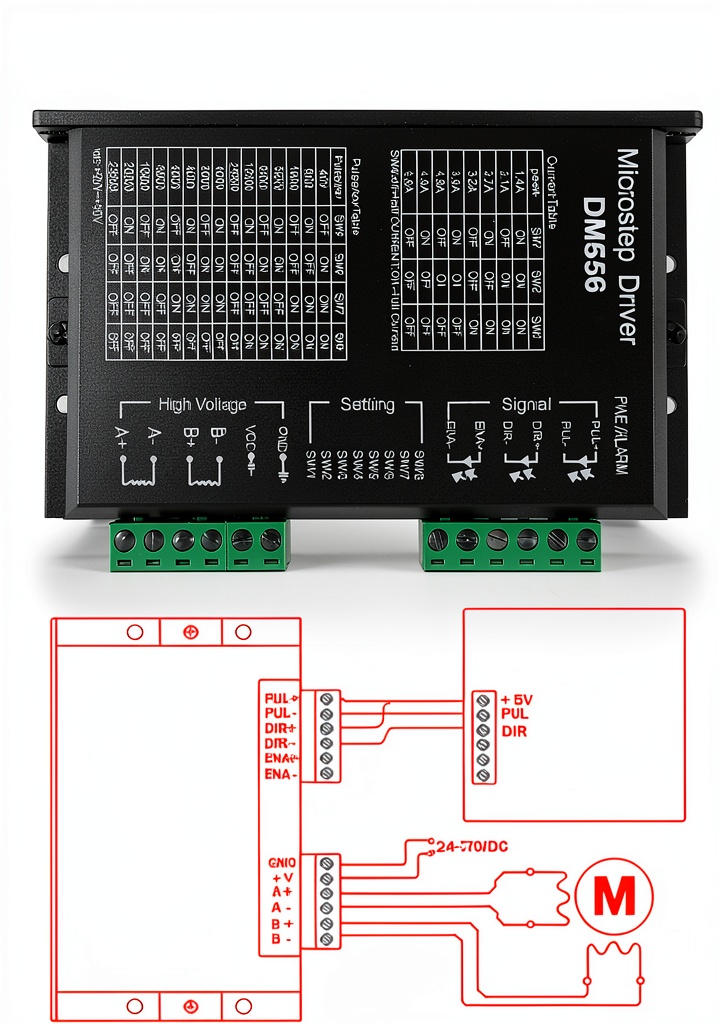

ACEIRMC has a reputation for delivering reliable motion control solutions, and the DM556 driver is no exception. Each unit undergoes rigorous quality testing, including thermal cycling, voltage tolerance, and load endurance, to ensure consistent performance under harsh operating conditions. The driver’s firmware is optimized for low latency response, providing real‑time adjustments that keep stepper motors in sync with high‑speed command inputs. In addition, ACEIRMC offers comprehensive technical support, including detailed documentation, wiring diagrams, and firmware updates, ensuring that customers can quickly integrate the driver into their systems and troubleshoot any issues that arise. The company’s commitment to after‑sales service includes a responsive help desk and a one‑year warranty, giving users confidence in the long‑term reliability of their investment.

Key Features

• Wide input voltage range (20‑50 V) accommodates diverse power supplies for flexible system design.
• High continuous current capability (up to 5.6 A) drives larger Nema 34 motors with strong torque output.
• 128 micro‑step resolution delivers ultra‑smooth motion, reducing vibration and improving surface finish.
• Adjustable current settings (1.0‑5.6 A) allow precise matching to motor specifications, enhancing efficiency.

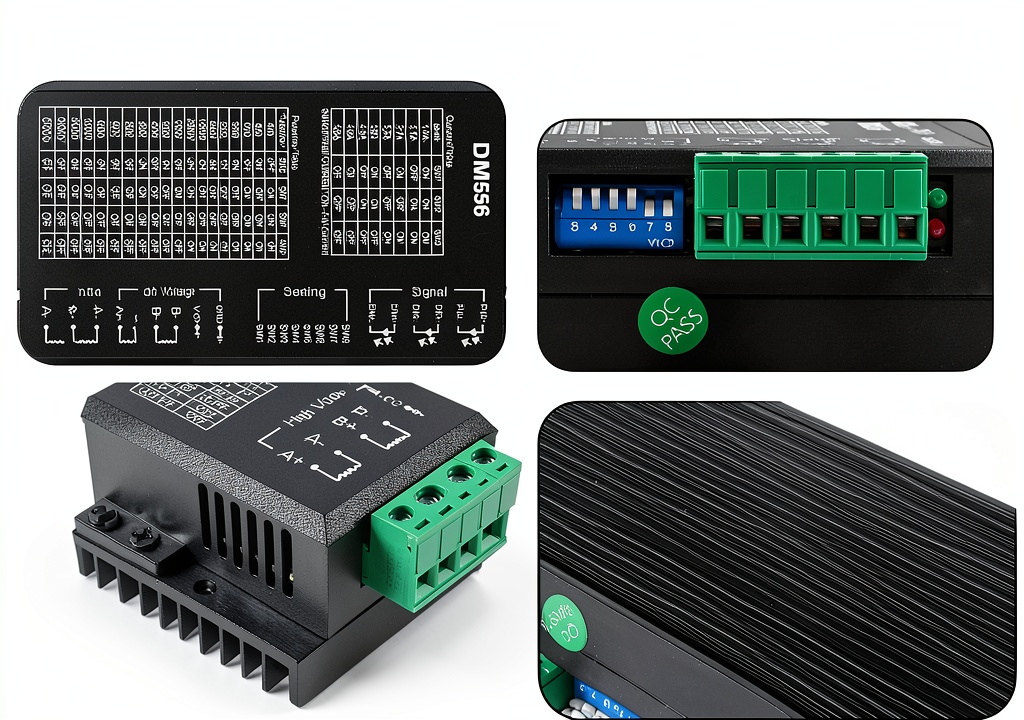

• Robust metal housing and thorough quality testing ensure long‑term durability and reliable operation.
• Comprehensive technical support and one‑year warranty provide peace of mind and quick issue resolution.

FAQ

What types of stepper motors are compatible with the DM556 driver?

The DM556 supports two‑phase hybrid stepper motors with outer diameters of 42 mm, 57 mm, and 86 mm, covering Nema 17, Nema 23, and Nema 34 motor families.

Can the driver be used without an external battery?

Yes, the DM556 operates directly from a DC power source within the 20‑50 V range and does not require any additional battery packs.

How do I adjust the output current for my specific motor?

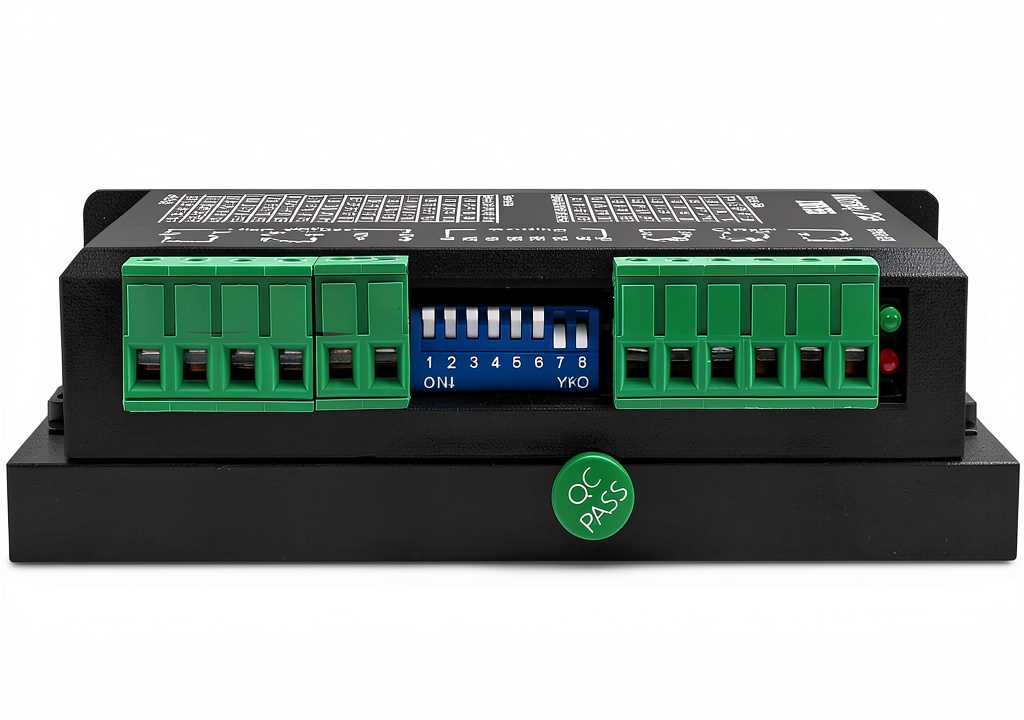

The driver includes an 8‑level potentiometer that lets you set the output current from 1.0 A to 5.6 A, allowing fine‑tuning to match the motor’s rated current and achieve optimal performance.

Is the DM556 suitable for high‑speed CNC applications?

Absolutely. With its 128 micro‑step capability and fast response firmware, the driver provides the precision and speed needed for demanding CNC machining and rapid prototyping tasks.

What warranty and support does ACEIRMC provide?

ACEIRMC offers a one‑year limited warranty covering manufacturing defects, along with access to technical support, firmware updates, and detailed integration guides.
